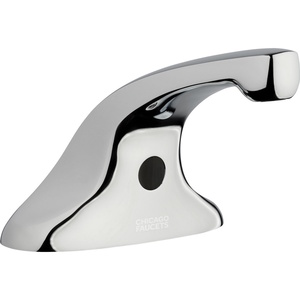

Chicago Faucets CEVRA12A13ABCPT "EVR Series" Electronic Bathroom Sink Faucet

Item:	CEVRA12A13ABCPT
Finish:	Polished Chrome Plated
Complete Faucet:	Price includes trim and valve
Quantity Available:	Retrieving ...

Details and Dimensions

Number of Faucet Holes	3 Hole
Faucet Centers	4 in
Spout Height	4-3/4"
Spout Reach	5"
Number Of Handles	0 Handle
Handle(s) Included	No
Hands Free Activation	Yes
Maximum Deck Thickness	1-1/2"
Escutcheon Included	No
Construction	Brass
Valve Type	Solenoid
Power Source	Battery
Flow Rate (GPM)	0.5
Drain Included	No
Height	4-3/4"
Width	6"
Length	7"
CEC Approved	Yes
ADA Compliant	Yes
Eco-Friendly	Lead Leaching Compliant
Additional Information	� Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box � Vandal Resistant � Touchless faucet with plug-and-play installation � EVR Control Box Assembly with Concealed Thermostatic Mixing Valve � Pressure compensating Econo-Flo� non-aerating spray outlet � 4 'AA' Batteries � 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds. Reactivate faucet by removing hands from the sensor for at least 10 seconds. � Dual supply with thermostatic mixing valve; flexible supply hoses included � Built-in Bluetooth� technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. � Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
Battery Type	AA Alkaline
Connection Size	3/8 in Female Compression Thread
Depth	7"
Lead Leaching Compliant	Yes
Supply Lines	Included
