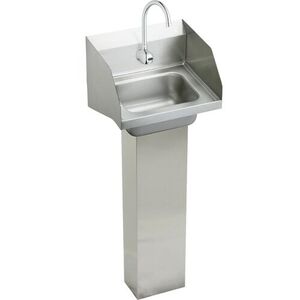

Elkay ECHSP1716LRSSACTMC Wall Hung Bathroom Sink
| Item: | ECHSP1716LRSSACTMC |
| Finish: | Brushed Satin |
| Quantity Available: | Retrieving ... |
Details and Dimensions
| Sink Installation Type | Wall Mount |
| Length | 16-3/4" |
| Width | 15-1/2" |
| Depth | 13" |
| Overall Size | 16-3/4 in x 15-1/2 in |
| Bowl Length | 12" |
| Bowl Width | 9-1/4" |
| Bowl Depth | 6" |
| Number of Faucet Holes | 1 Hole |
| Faucet Included | Yes |
| Drain Included | Yes |
| Drain Location | Center |
| Drain Hole Size | 2" |
| Construction | 304 Stainless Steel |
| Includes | CHSP1716 sink, LKB722C AC/battery-powered sensor faucet, LK723 thermostatic mixing valve, LK8 grid drain fitting, and LK500 P-trap. |
| Additional Information | • Stainless Steel Pedestal |
| Corner Radius | 1-3/4'' Radius Coved Corners |
| Gauge | 18 |
| Low Lead Compliant | Yes |
| Number of Bowls | 1 |
| Overall Height | 12-3/4" |
| Spout Height | 8-3/4" |
| Spout Length | 5-19/50" |
