EELV2219SACTMC Wall Hung Bathroom Sink - Lustrous Satin

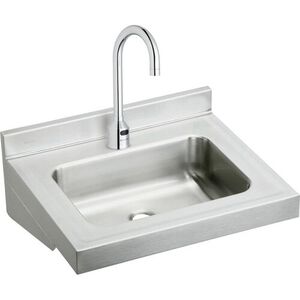

Elkay EELV2219SACTMC Wall Hung Bathroom Sink

Item: EELV2219SACTMC
Finish: Lustrous Satin
Quantity Available: Retrieving ...


Details and Dimensions

Sink Installation Type Wall Mount
Length 22"
Width 19"
Depth 5-1/2"
Overall Size 22 in x 19 in
Bowl Length 16"
Bowl Width 11-1/2"
Bowl Depth 5-1/2"
Sink Shape Rectangle
Number of Faucet Holes 1 Hole
Faucet Included Yes
Drain Included No
Drain Location Center Rear
Drain Hole Size 1-5/8"
Overflow No
Construction 304 Stainless Steel
ADA Compliant Yes
Includes ELV2219 sink, one LKB721C AC/battery-powered sensor faucet, and one LK723 thermostatic mixing valve.
Corner Radius 1-3/4'' Coved Corners
Gauge 18
Low Lead Compliant Yes
Number of Bowls 1
Overall Height 12-1/2"
Spout Height 8-1/4"
Spout Length 5-19/50"
