PFFFUCD Union Pipe Fittings and Flanges - N/A

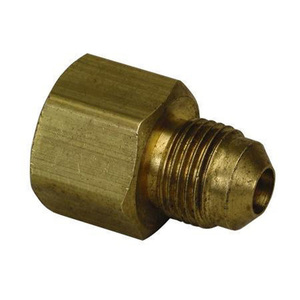

PROFLO PFFFUCD Union

Item: PFFFUCD
Finish: N/A
Quantity Available: Retrieving ...


Details and Dimensions

Features • Manufactured with dryseal pipe threads
• "Designed for use with aluminum, copper and plastic tubing"
• Flare end has 16 threads
• "Pressure ratings, depends on tubing type and wall thickness, see Specifications document for exact detail"
• Resists mechanical pull out
• Recommended for higher pressures than those covered by compression fittings
Construction Brass
ANSI ANSI B1.20.1
End Connection OD Flare x FIP
End Connection 1 OD Flare
End Connection 2 FIP
Fitting Size 1 3/8 in
Fitting Size 2 1/2 in
Fitting Sizes 3/8 in x 1/2 in
Fitting Type Flare
Material Brass
Maximum Temperature 250
