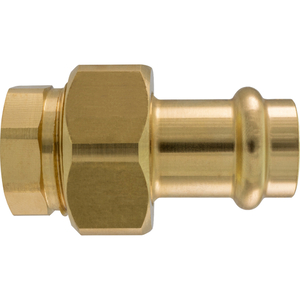

PROFLO PFXPPFUF Union
| Item: | PFXPPFUF |
| Finish: | N/A |
| Quantity Available: | Retrieving ... |
Details and Dimensions
| Additional Information | • Factory installed and lubricated EPDM O-rings. • Compatible with most major pressing tools and jaws available in the market. • Approved for residential and commercial applications including potable water and heating/cooling. • Standard operating pressure 300 psi MAX. • Available in sizes 1/2'' - 2'' including couplings, elbows, tees, adapters, reducers, caps and unions • Leak detection to easily identify uncrimped or improperly crimped connections |
| Construction | Brass Lead Free |
| ANSI | ANSI 61-2022, ANSI 372-2020 |
| End Connection 1 | Press |
| End Connection 2 | FPT |
| Fitting Size 1 | 3/4 |
| Fitting Size 2 | 3/4 |
| Low Lead Compliant | Yes |
| Maximum Pressure | 300 psi |
| Maximum Temperature | 250 F |
| Minimum Temperature | 0 F |
| Temperature Range | 0 to 250 F |
| Weight | 1 lb |
| Product Specifications |
| Warranty |
