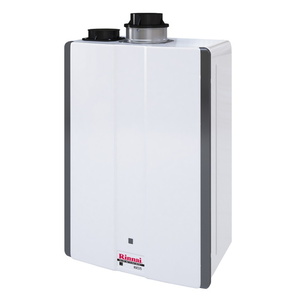

Rinnai RRUCS75IN "RUCS Model Series" Residential
| Item: | RRUCS75IN |
| Finish: | White |
| Quantity Available: | Retrieving ... |
Details and Dimensions
| Water Heater Type | Tankless |
| Water Heater Installation Type | Whole House Indoor Wall Mount |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| Energy Factor | 0.93 |
| BTU | 160000 |
| Ignition Type | Electric |
| Connection Size | NPT |
| Wattage | 89 Watts |
| Voltage | 120V |
| Width | 18-1/2" |
| Height | 31-1/10" |
| UL Listed | No |
| Eco-Friendly | Energy Star |
| Additional Information | • Professional installation required; call 84-GO-Rinnai for assistance. |
| ANSI | ANSI Z21.10.3 |
| CEC Approved | Yes |
| Condensing | Yes |
| CSA Rated | 1 |
| Depth | 10-1/10" |
| Duct Size | 4" |
| Emission | UltraLow NOx |
| Flow Rate (GPM) | 7.5 |
| Ignition System | Direct Electronic Ignition |
| Included Features | • Suitable For Installation In Non-traditional Spaces Such As Crawl Spaces And Attics • Automatic Frost Protection |
| Maximum Pressure | 150 psi |
| Maximum Temperature | 140 |
| MBH | 160 |
| Minimum Temperature | 120 |
| Pipe/Tubing Size | 3/4 in |
| Temperature Range | 120 to 140 Deg F |
| Uniform Energy Factor (UEF) | 0.9 |
| Water Heater Vent Type | Direct Vent |
| Weight | 58 lbs |
| Wi-Fi Compatibility | No |
| Product Specifications |
| Installation Guide |
