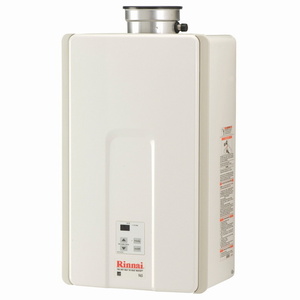

Rinnai RV65IN "V Model Series" Residential
| Item: | RV65IN |
| Finish: | White |
| Quantity Available: | Retrieving ... |
Details and Dimensions
| Water Heater Type | Tankless |
| Water Heater Installation Type | Wall Mount Indoor |
| Fuel Type | Gas |
| Gas Type | Natural Gas |
| Energy Factor | 0.82 |
| BTU | 150000 |
| Ignition Type | Electric |
| Connection Size | NPT |
| Wattage | 76 Watts |
| Voltage | 120V |
| Width | 14-1/25" |
| Height | 26-9/10" |
| UL Listed | No |
| Eco-Friendly | Energy Star |
| Additional Information | • Required Accessories: Termination Kits: R223181, R223188, R223182 |
| ANSI | ANSI Z21.10.3 |
| Condensing | No |
| CSA Rated | 1 |
| Depth | 9-27/100" |
| Duct Size | 3/5'' |
| Emission | UltraLow NOx |
| Flow Rate (GPM) | 6.3 |
| High Efficiency | Yes |
| Ignition System | Direct Electronic Ignition |
| Included Features | • Optional Accessories: Raised Horizontal Termination Kit: R224046 • Pre-set at 120 Degrees F |
| Includes | Integrated Controller |
| Maximum Pressure | 150 psi |
| Maximum Temperature | 140 |
| MBH | 150 |
| Minimum Temperature | 98 |
| Pipe/Tubing Size | 3/4 in |
| Temperature Range | 98 to 140 Deg F |
| Uniform Energy Factor (UEF) | 0.8 |
| Water Heater Vent Type | Direct Vent |
| Weight | 46 lbs |
| Wi-Fi Compatibility | Yes |
| Product Specifications |
| Installation Guide |
