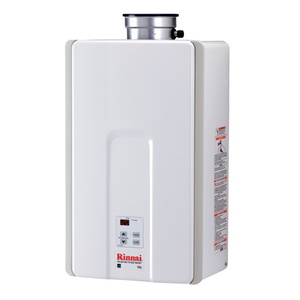

Rinnai RV94IP "V Model Series" Residential
| Item: | RV94IP |
| Finish: | White |
| Quantity Available: | Retrieving ... |
Details and Dimensions
| Water Heater Type | Tankless |
| Water Heater Installation Type | Whole House Indoor Wall Mount |
| Fuel Type | Gas |
| Gas Type | Liquid Propane |
| Energy Factor | 0.82 |
| BTU | 199000 |
| Ignition Type | Electric |
| Low Lead Compliant | Yes |
| Connection Size | NPT |
| Wattage | 97 Watts |
| Voltage | 120V |
| Width | 14-1/25" |
| Height | 26-9/10" |
| UL Listed | No |
| Eco-Friendly | Energy Star |
| ANSI | ANSI Z21.10.3 |
| CEC Approved | Yes |
| Condensing | No |
| CSA Rated | 1 |
| Depth | 9-27/100" |
| Flow Rate (GPM) | 9.8 |
| GSA Approved | No |
| High Efficiency | Yes |
| IAPMO Listed | No |
| Ignition System | Direct Electronic Ignition |
| Included Features | • Suitable For Installation In Non-traditional Spaces Such As Crawl Spaces And Attics |
| Maximum Pressure | 150 psi |
| Maximum Temperature | 140 |
| MBH | 199 |
| Minimum Temperature | 98 |
| Pipe/Tubing Size | 3/4 in |
| Temperature Range | 98 to 120 Deg F |
| Uniform Energy Factor (UEF) | 0.81 |
| Water Heater Vent Type | Direct Vent-Concentric |
| Weight | 47 lbs |
| Wi-Fi Compatibility | Yes |
